Below table lists the function name and description of the dashboard element function dialog. It helps user to organize and manage their dashboards inside the tree list view working space. The function dialog will pop up for the specific dashboard element selected when user right-clicks on it.
| Function Name | Description |
|---|---|
| + Add New | Create and add a new child dashboard element to selected dashboard element. |
| Edit Dashboard | Edit the selected dashboard element setting. |
| Clone Dashboard | Copy and clone a dashboard element from the dashboard element selected |
| Clone Dashboard & Children | Copy and clone a dashboard element along with its child elements from the dashboard element selected. |
| Create Template | Create a dashboard template from the selected dashboard |
| Delete Dashboard | Delete the selected dashboard element. |

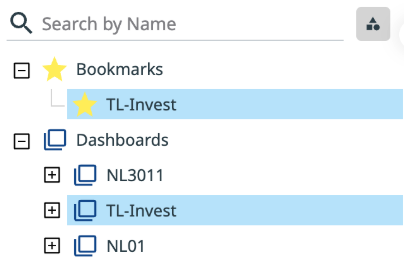

| Bookmark |
Mark the bookmark for the selected dashboard to display this dashboard in the bookmark area for quick access
|
| Import Dashboard |
Select and import the dashboard file exported by AHI system, once successful import, dashboard will create automatically. |
| Export Dashboard |
Export selected dashboard as a file for backup purpose |
| Futuristic Dashboard |
It’s used to setting the specific background for the selected dashboard. User must switch to the Dark mode before using this feature. The background selected is one of three widget types such as 2D Process Graphic, Asset Media, or Static 3D Model Viewer. The selected widget will be the dashboard background and can’t be edited. User is able to interact with the 3D image if it’s the dashboard background |
